MAGE 10 B Smart Curtain Motor

Short Description:

*Original & elegant design
*Available with different smart control module, such as WiFi, Zigbee, Bluetooth etc.
*Build-in battery, workable with solar panel
*3 level working speed



Product Detail

Product Tags

Product Details

Curtain Motor Mage 10 B1

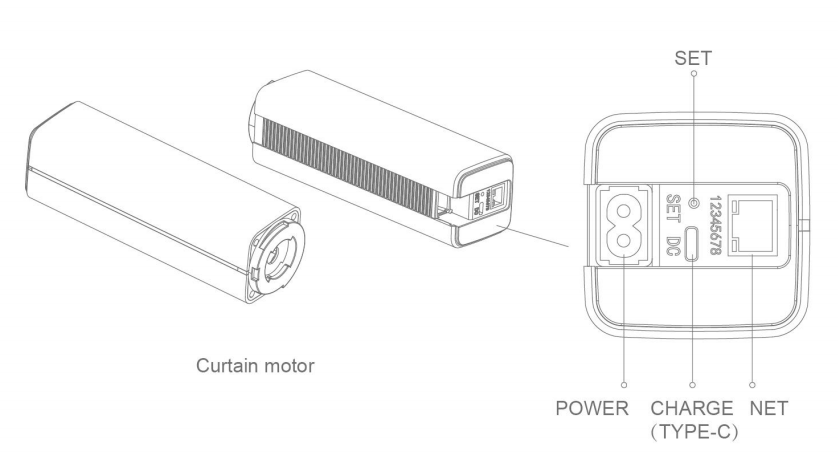

This curtain motor has 3 different power supply methods. One is powered by the AC 100~240V via splay cable,one is charged by 5V via the TYPE-C USB connector. another one is powered by solar panel .

Besides the remote control and manually start, the curtain motor is also available to be integrated with wireless smart module to realize the APP,voice,smart speakers or other control solutions. Network connector at the motor bottom is used for the wired smart control protocol.

The curtain motor has electronic limit switch, realizing the auto limit setting and obstacle detection function. It has 3 levels running speed, which are quiet running ,normal and high speed.

Quality Control

Before launching to the mass production, the main parts and main functions have done the aging test. Each curtain motor is 100% tested before its delivery.



Curtain motor technical parameters:

Product nameSmart Curtain Motor
Product modelMAGE 10 B
Radio Frequency433.92MHz
Radio distance50m
Input VoltageAC 100~240V/5V
Nominal consumption22W
Nominal current0.1A
Working speed12-36cm/s
Working temperature-20-55 ℃
Insulation indexClass B
Protection indexIP20
Loading capacity50kgs
Motor size206mm X 61mm X 61mm

Installation

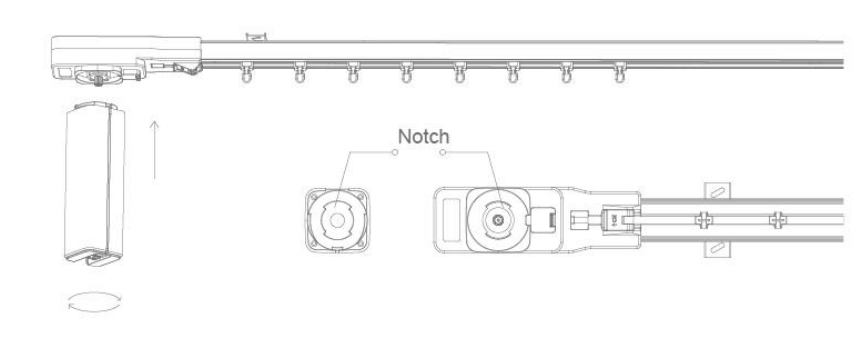

Install the curtain motor to the track. Push the motor head to the notch of the main drive case, then turn the motor 90°in left direction.

Curtain Motor Mage 10 B3

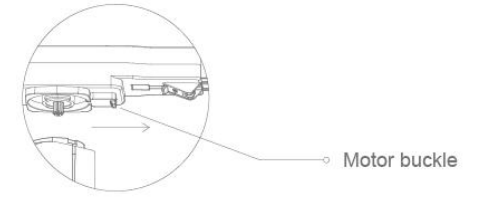

Take off the curtain motor from the track. Pull the motor buckle away, then turn the motor 90°in right direction.

Curtain Motor Mage 10 B2

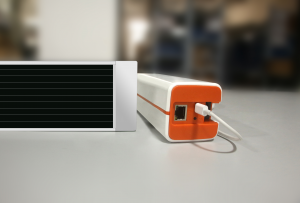

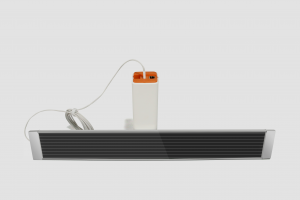

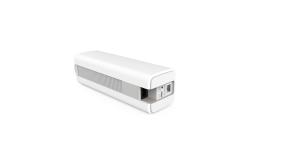

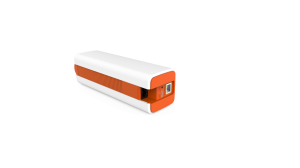

Real picture

4
5
2
3
1
