MAGE 10 B-5 Smart Drape Motor Kit with 5 meters rod

Short Description:

*DIY motorized curtain kit, including motor, track , remote and mounting accessories
*Track assembling without tooling
*Special track assembling system 10 times shorten the assembling time

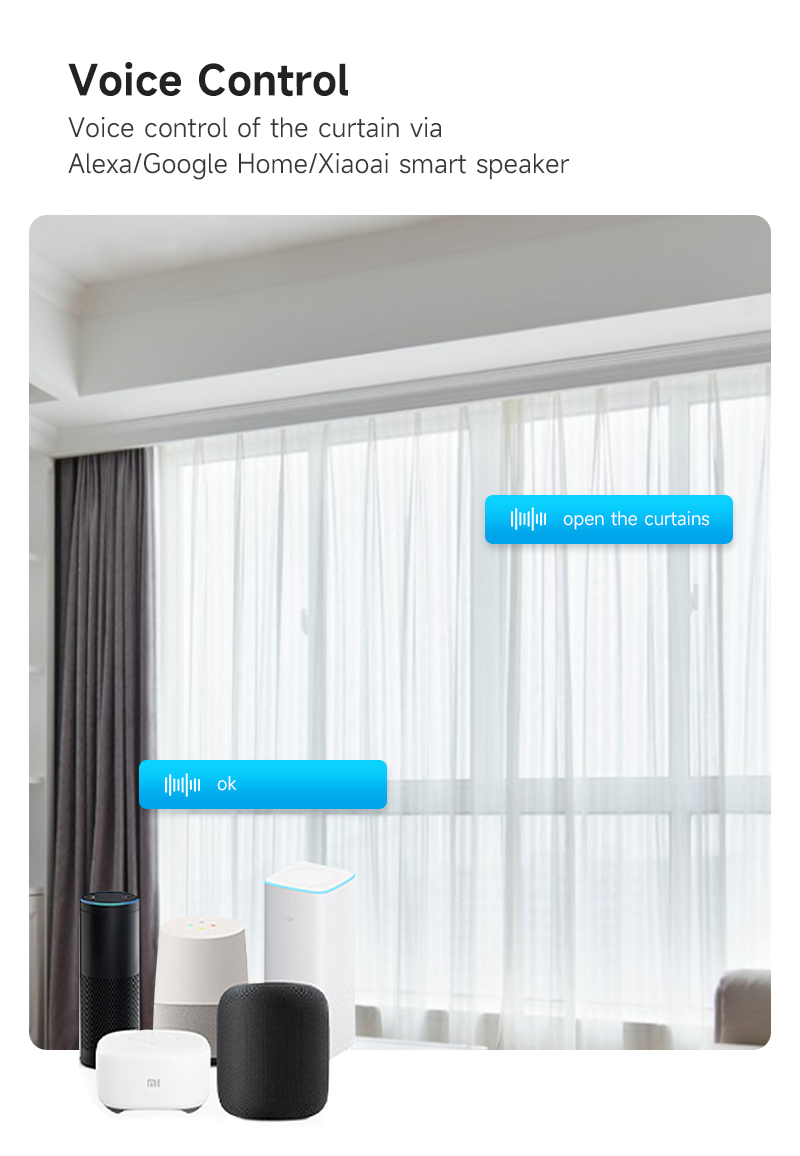

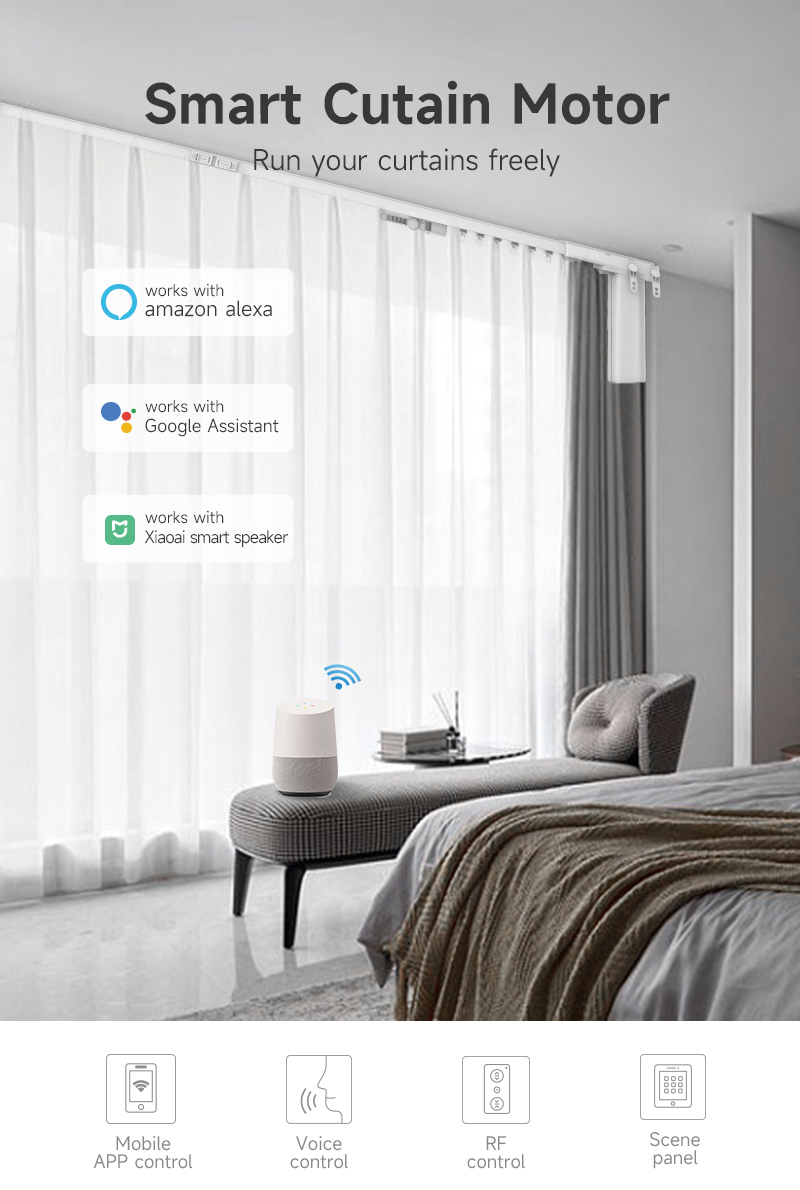

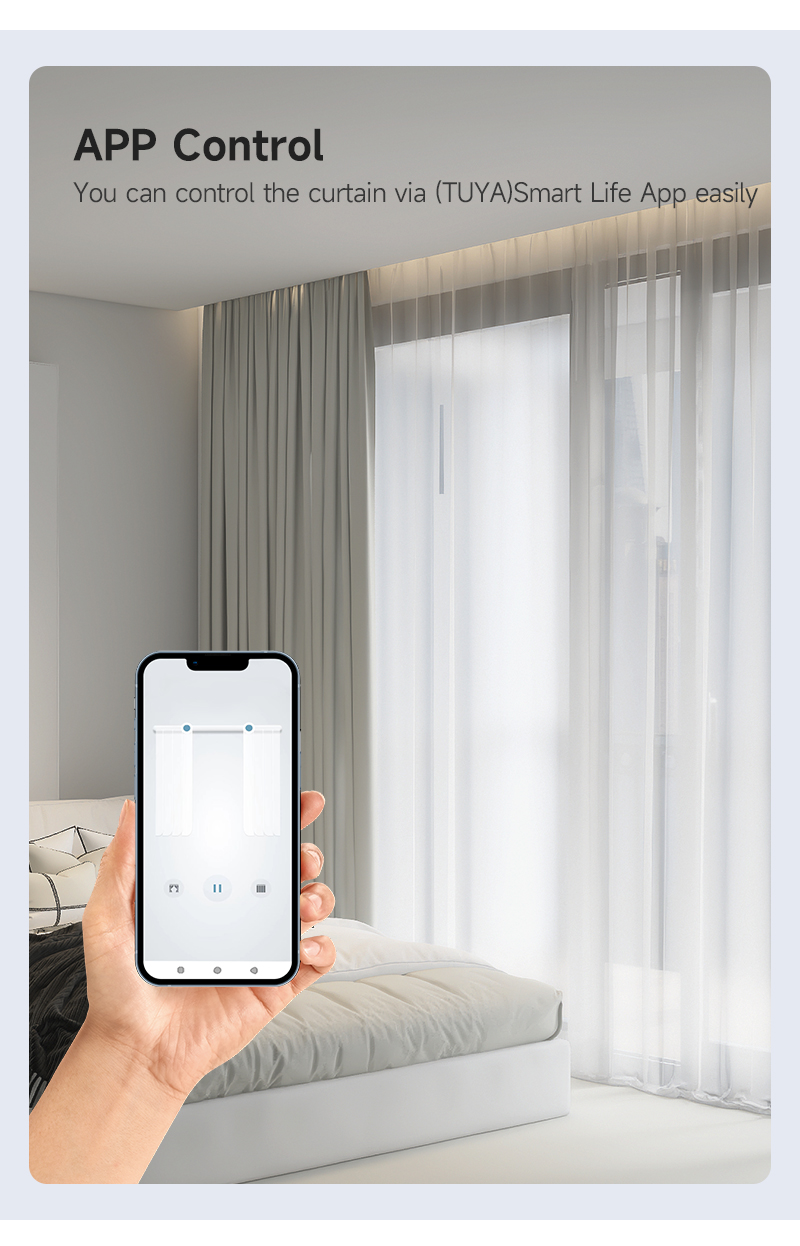

*The curtain kit could connect to different smart home platform, to be integrated into the smart home system through APP control, voice control etc.


Product Detail

Product Tags

Product Details

*MAGE 10 B-5 Smart curtain pack is suitable for the track length less than 5 meters. The pack has included the curtain motor, adjustable track, remote etc.
*World first track driving system without traditional belt, which avoid the belt aging and loosen. It is not only easier the work process but also save the after-sale cost.
*DIY assemble the track as Lego, even workable by children. It simplify the training procedure and time, and save the labor cost.

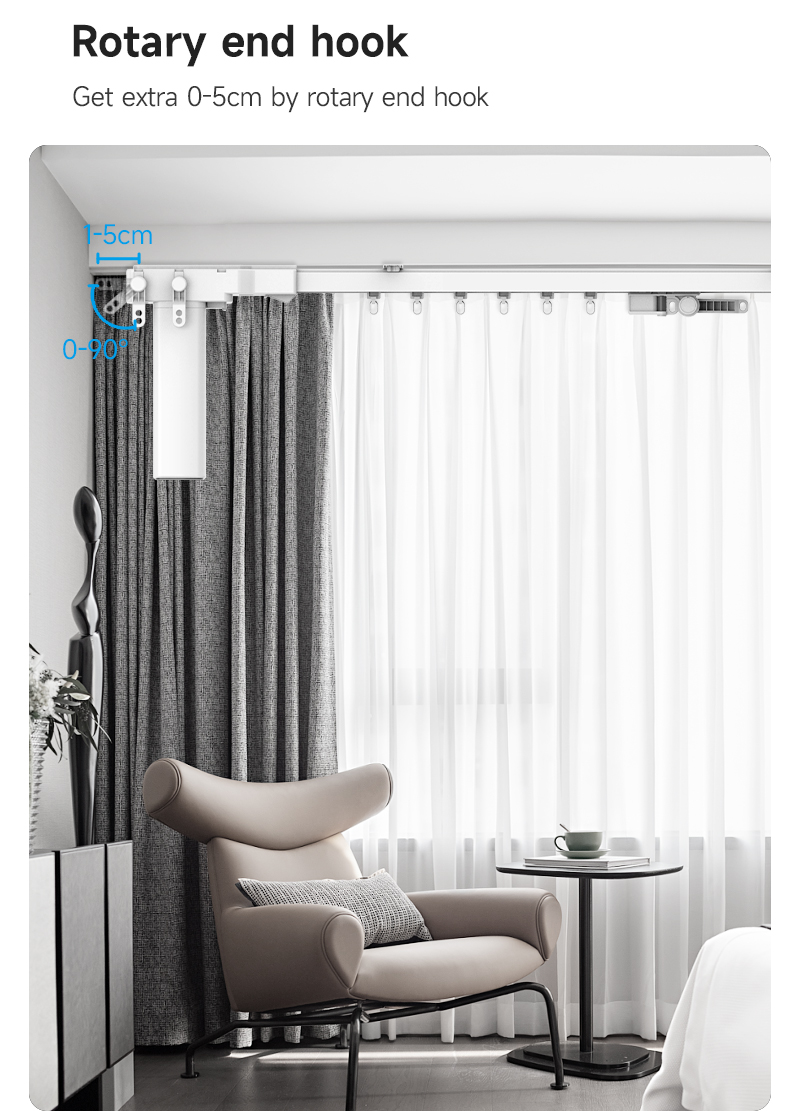

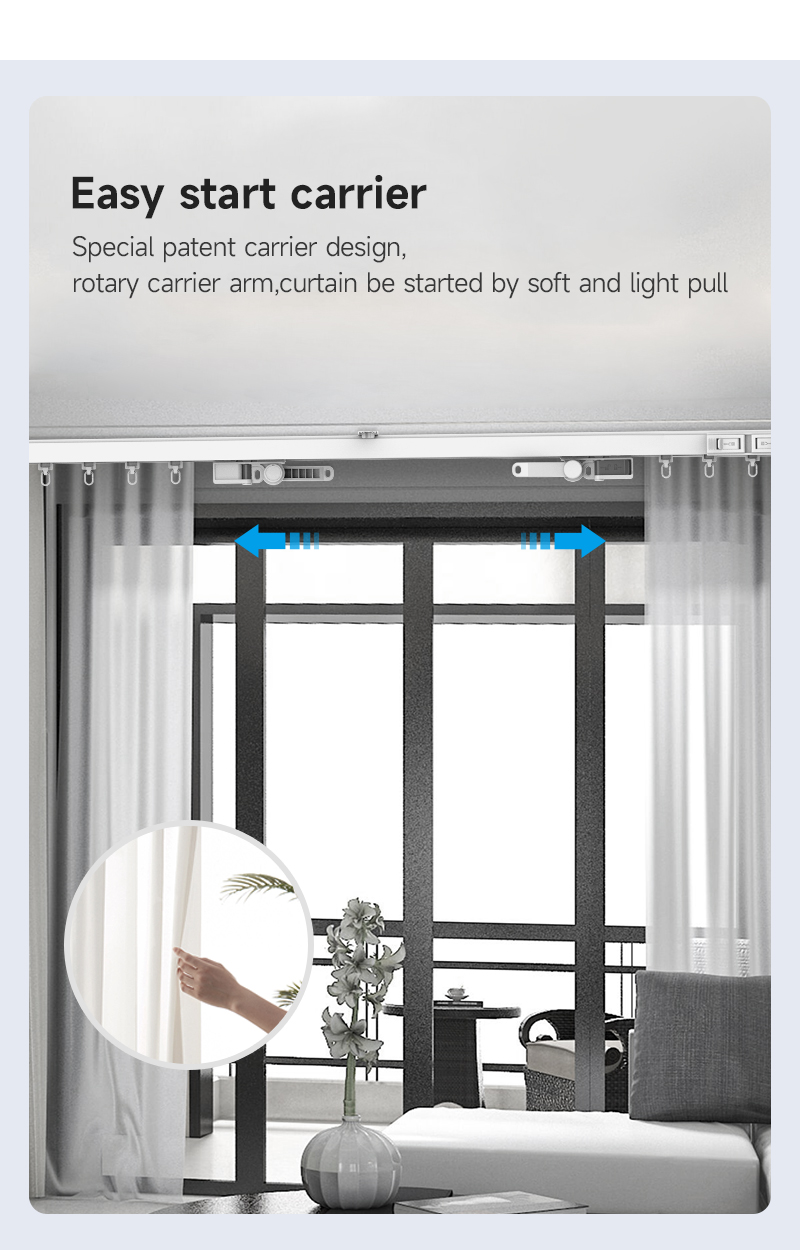

*Design in details due to the market feedback of old system. Such as power-assisted arm, extended hook. Etc.

Application

The products are widely used in the home environment, like living room, bedroom, and also hotel, stage and so on.

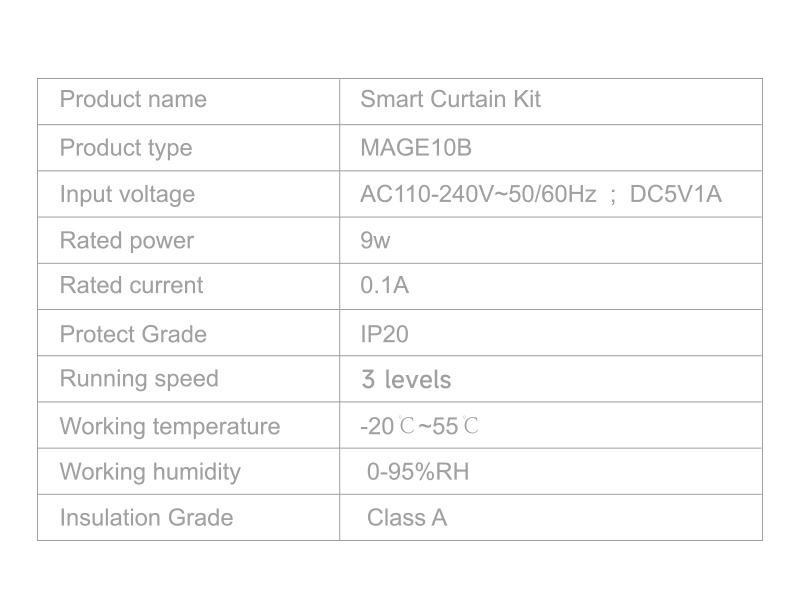

Curtain motor specification

Radio Frequency

433.92MHz

Radio distance

50m

Input Voltage

AC 100~240V/5V

Nominal consumption

22W

Nominal current

0.1A

Working speed

12-36cm/s

Working temperature

-20-55

Insulation index

Class B

Protection index

IP20

Loading capacity

50kgs

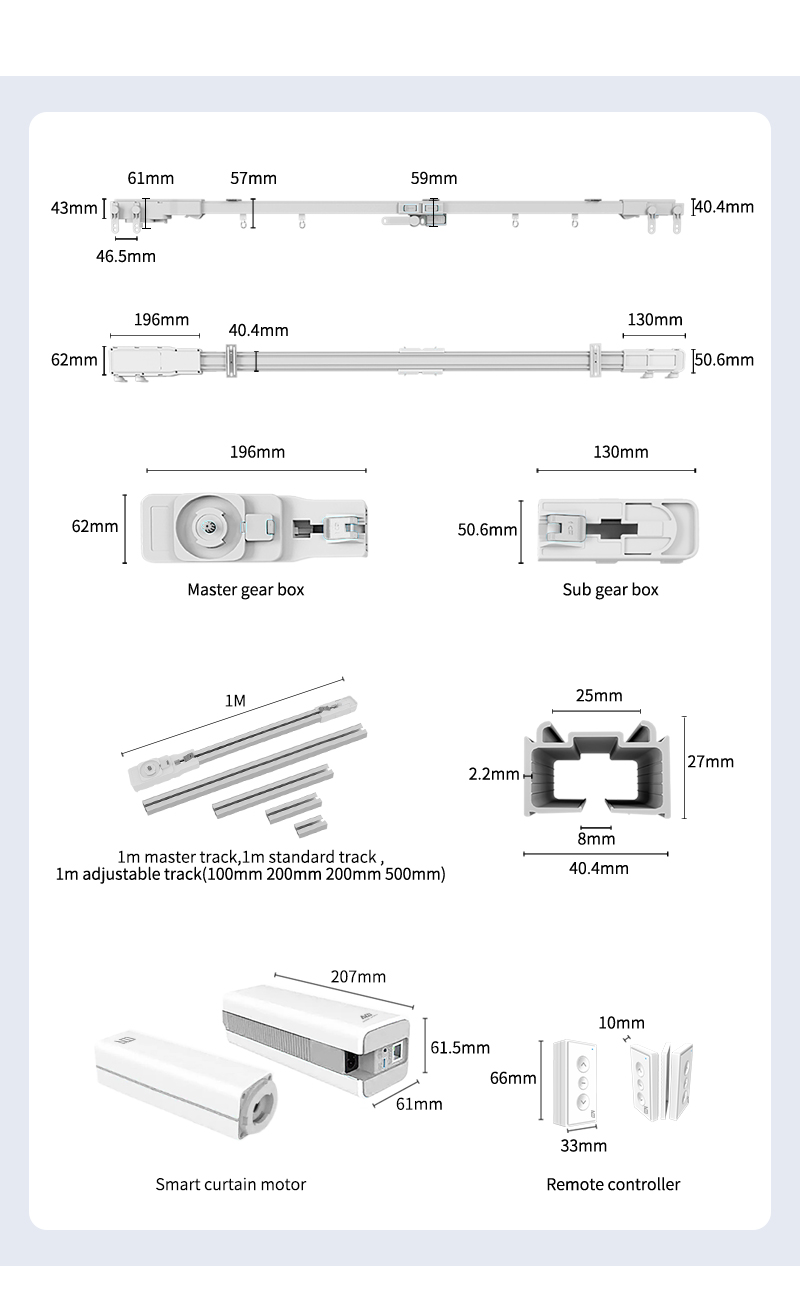

Motor size

206mm X 61mm X 61mm

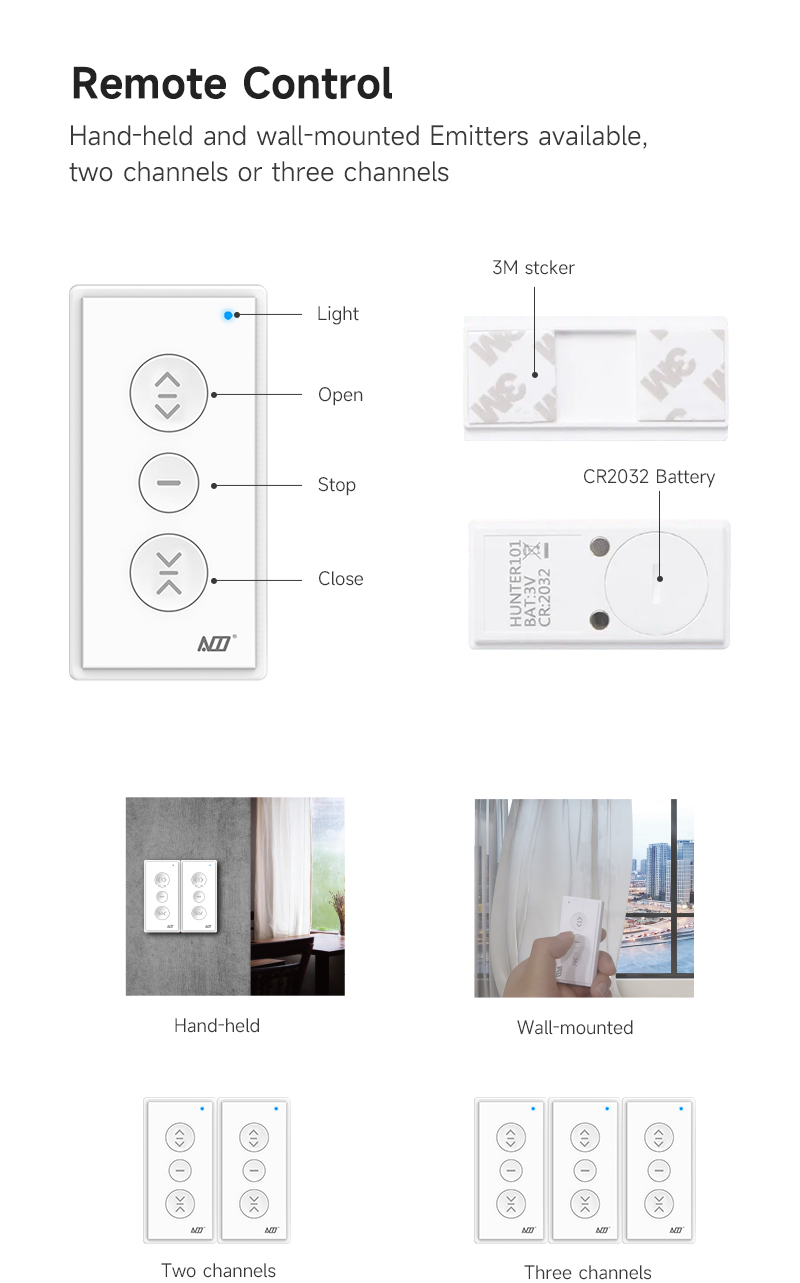

Remote Specification

Radio Frequency

433.92MHz

Radio distance

50m

Battery model

CR2032

Battery voltage

3V

Battery life

2 years

Battery power

210MAH

Fixing design

Magnetic

Product size

66mm X 33mm X 10mm

Packaging

Packaging size: 1152*220*70mm
Packed weight: 5.7kg
Package material: Paper box

Commercial Condition

Place of Origin: China
Certification: CE ROHS REACH FCC
MOQ: 500 sets

Supply Ability: 20000 sets per month
Delivery Port: NINGBO or SHANGHAI
Guarantee Period: 3 years
