MAGE 10 B-2 Smart Curtain Kit

Short Description:

ADD new motorized curtain system adopt innovative design conception, without traditional belt system makes the whole assembly more efficiency,and no need to worry about the running obstacle caused by the belt jam anymore.
With built-in Lithium battery,the motor can still running about 15days even if there is a power failure in the room.

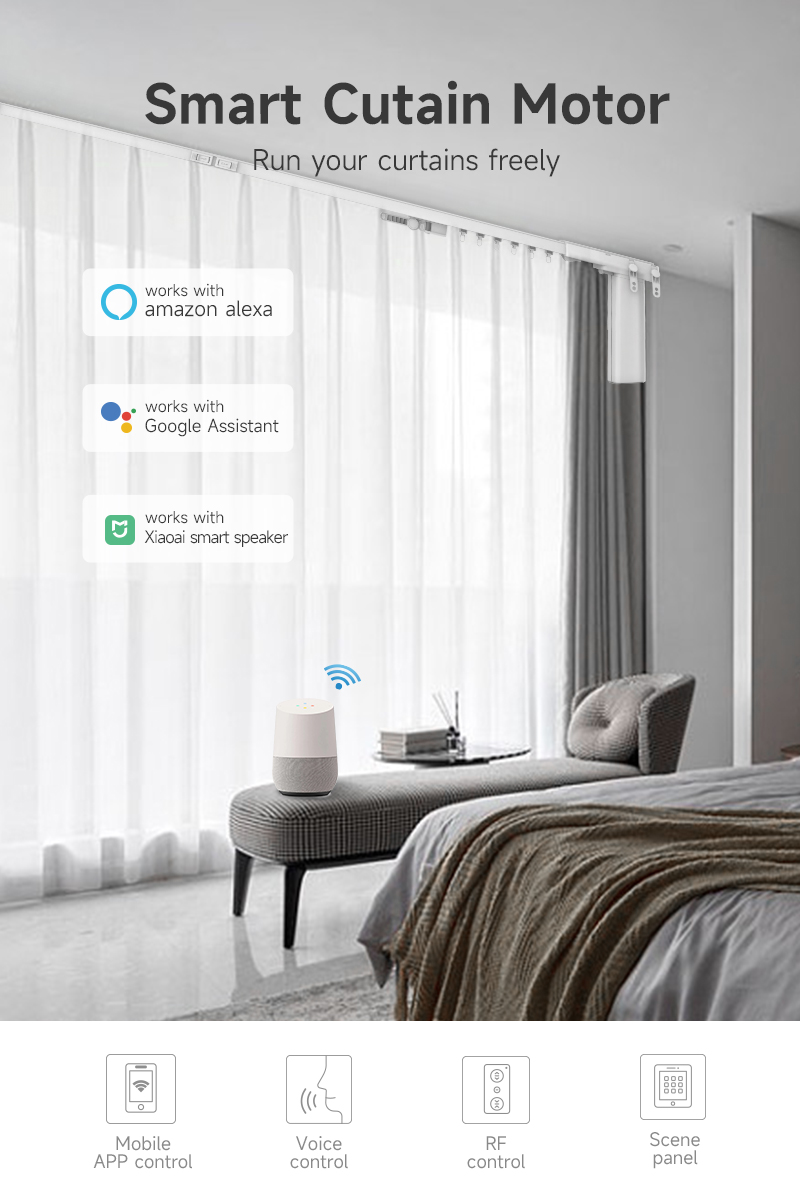

Multi-intelligent control solutions are available.
For more advantages, see the following details



Product Detail

Product Tags

2_01

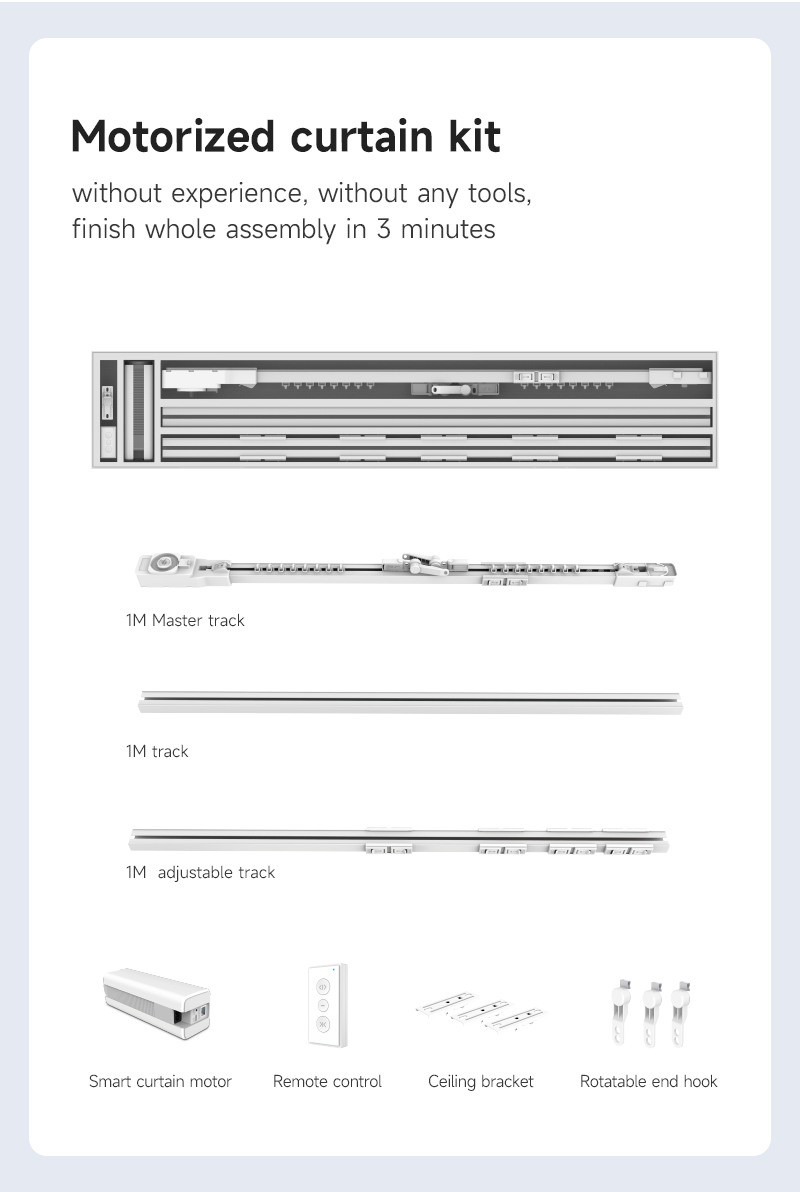

2_02
2_03
2_04
2_05
2_06

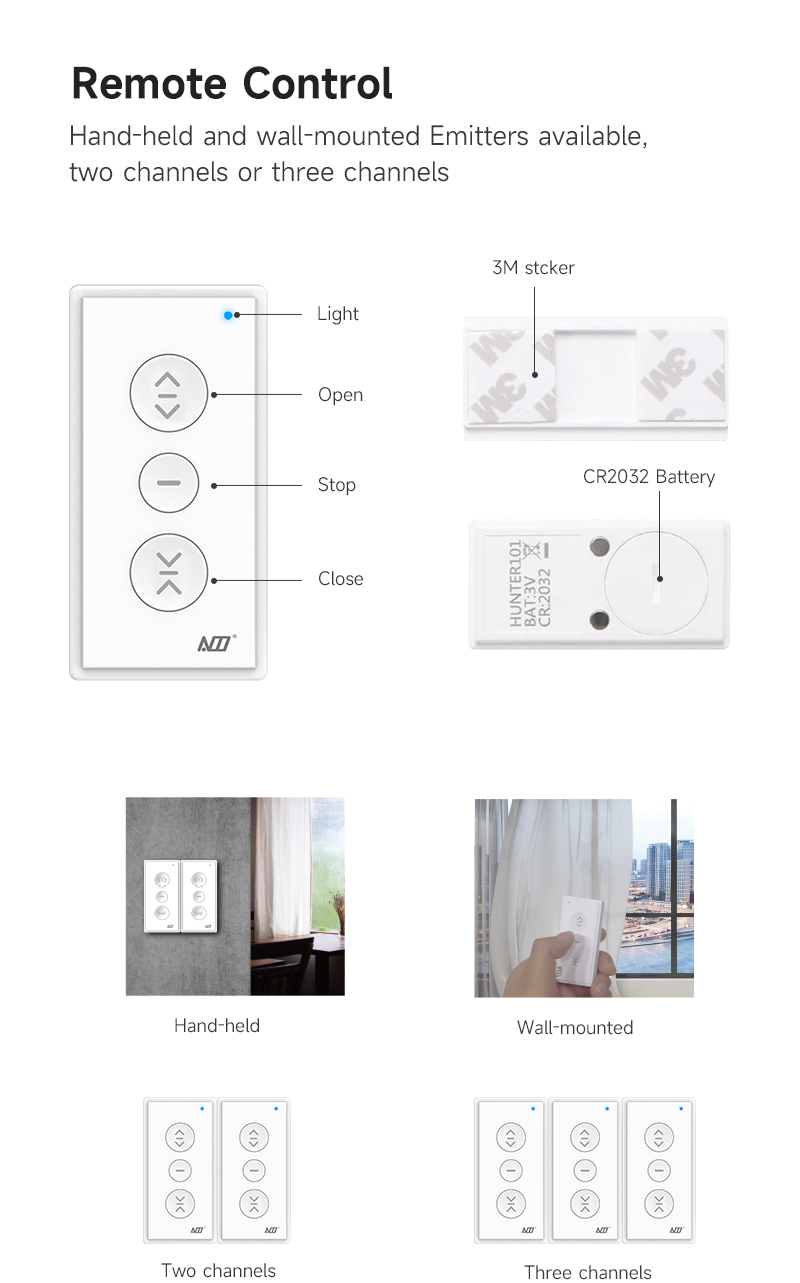

1_07

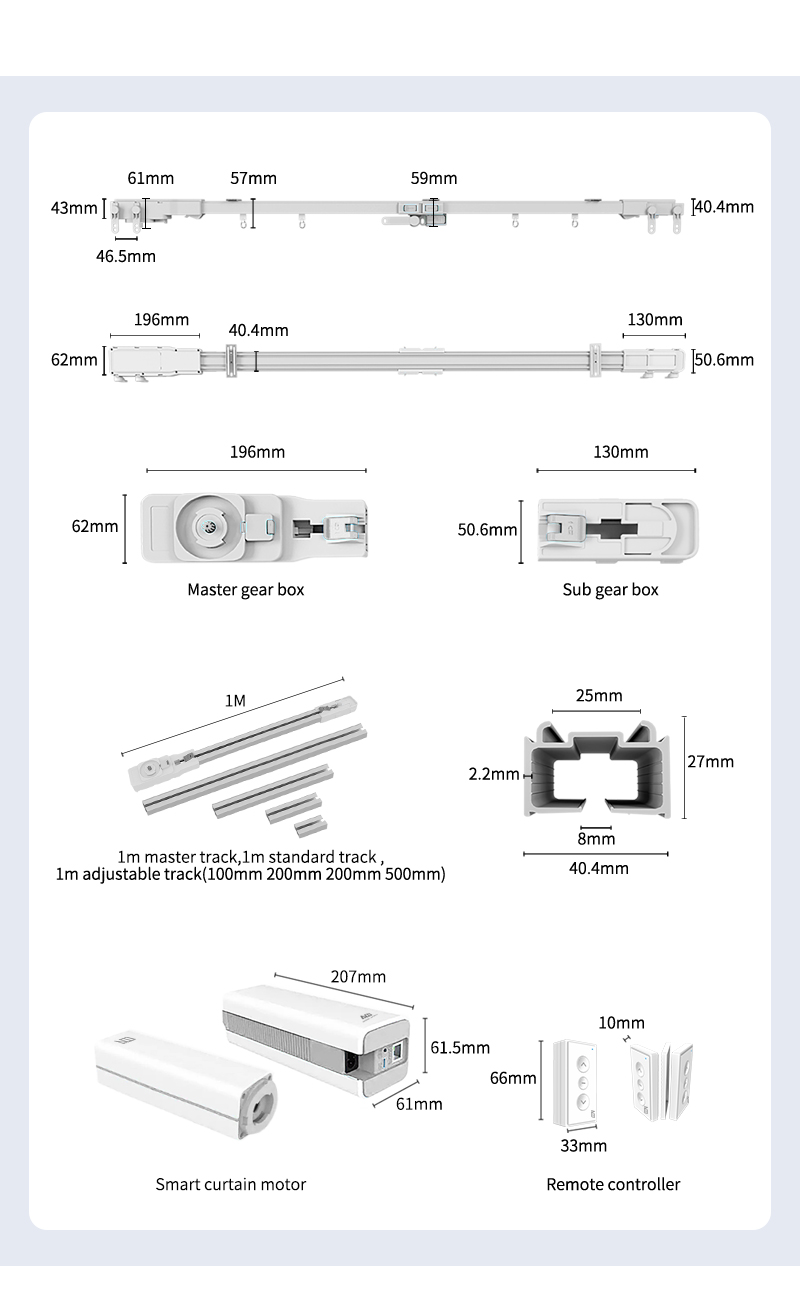

2_08
2_09
2_10
2_11

Quality Control

Before launching to the mass production, the main parts and main functions have done the aging test. Each curtain motor is 100% tested before the factory delivery.

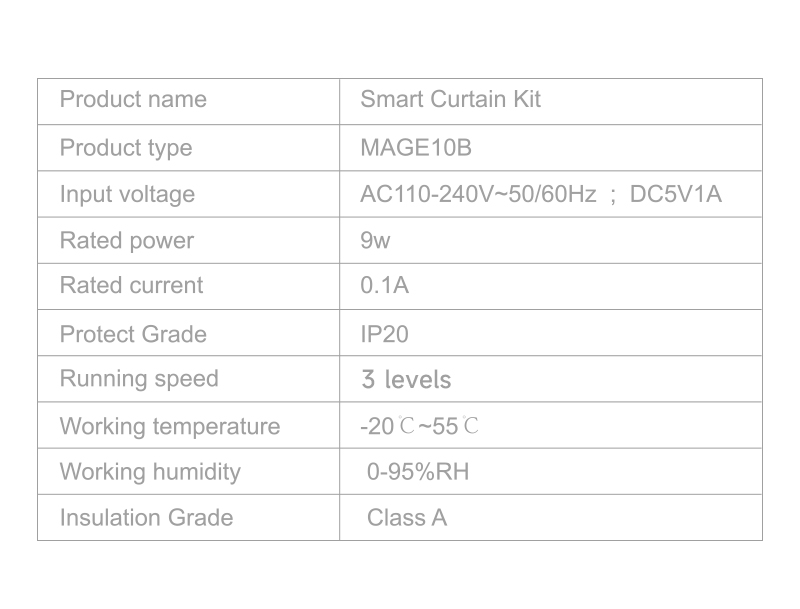

The specification of the curtain motor is below:

Product name

Smart Curtain Motor

Product model

MAGE 10 B

Radio Frequency

433.92MHz

Radio distance

50m

Input Voltage

AC 100~240V/5V

Nominal consumption

22W

Nominal current

0.1A

Working speed

12-36cm/s

Working temperature

-20-55

Insulation index

Class B

Protection index

IP20

Loading capacity

50kgs

Motor size

206mm X 61mm X 61mm

Smart curtain motor function:

Build-in lithium battery, available by motor control in power failure

Electronic limit, auto limit setting

Obstacle detection function

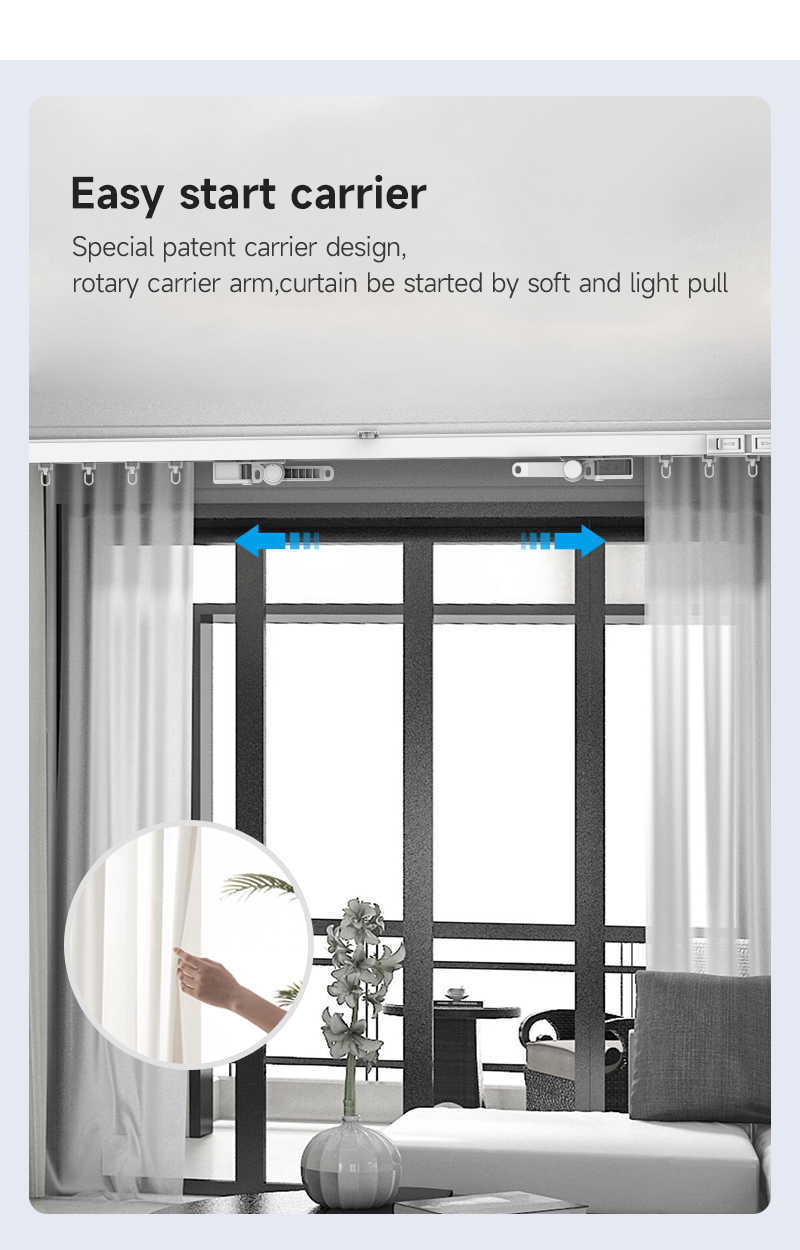

Manual pulling function

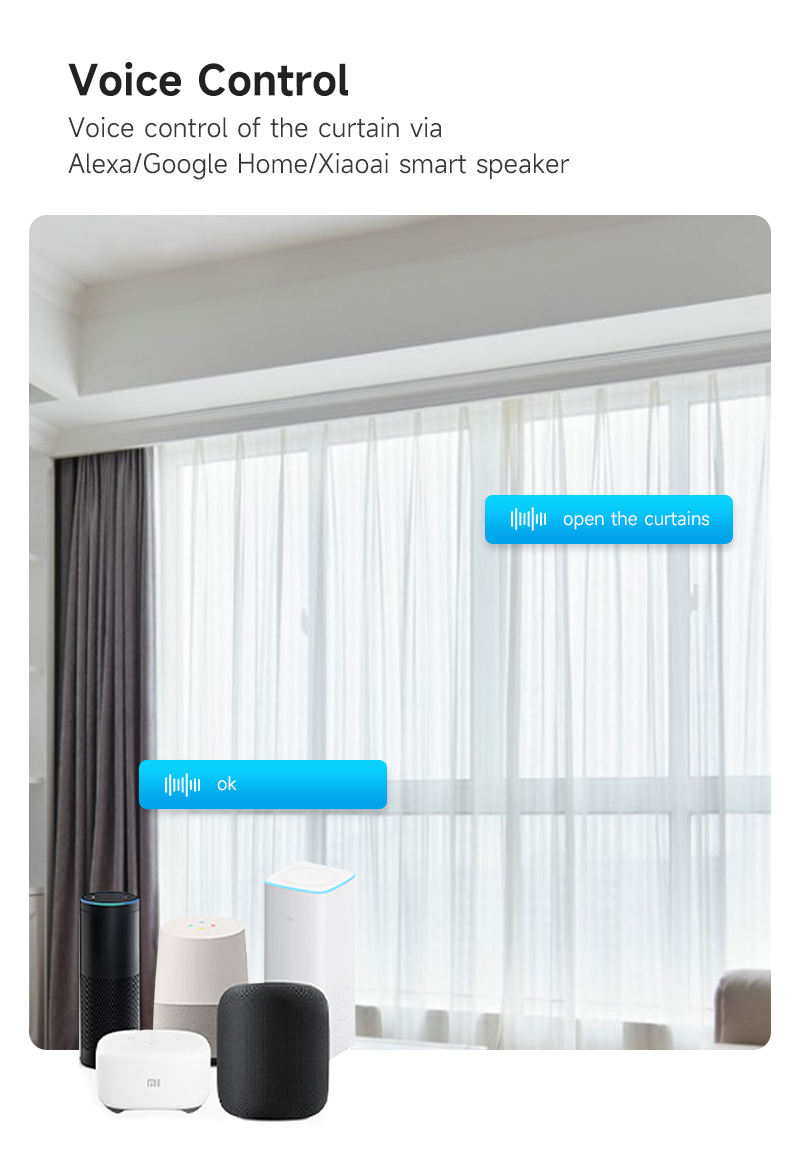

Work with smart home system by different smart module

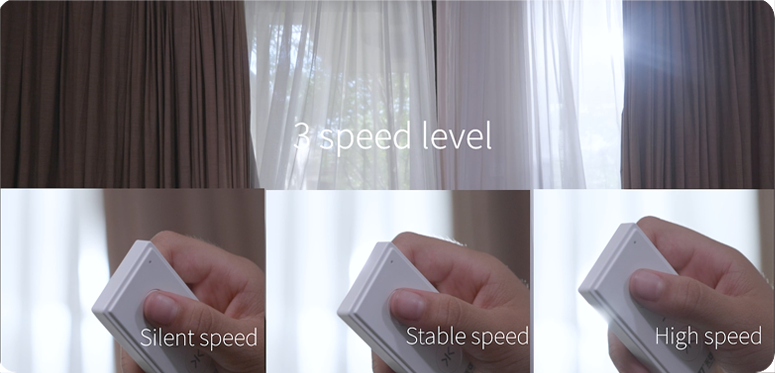

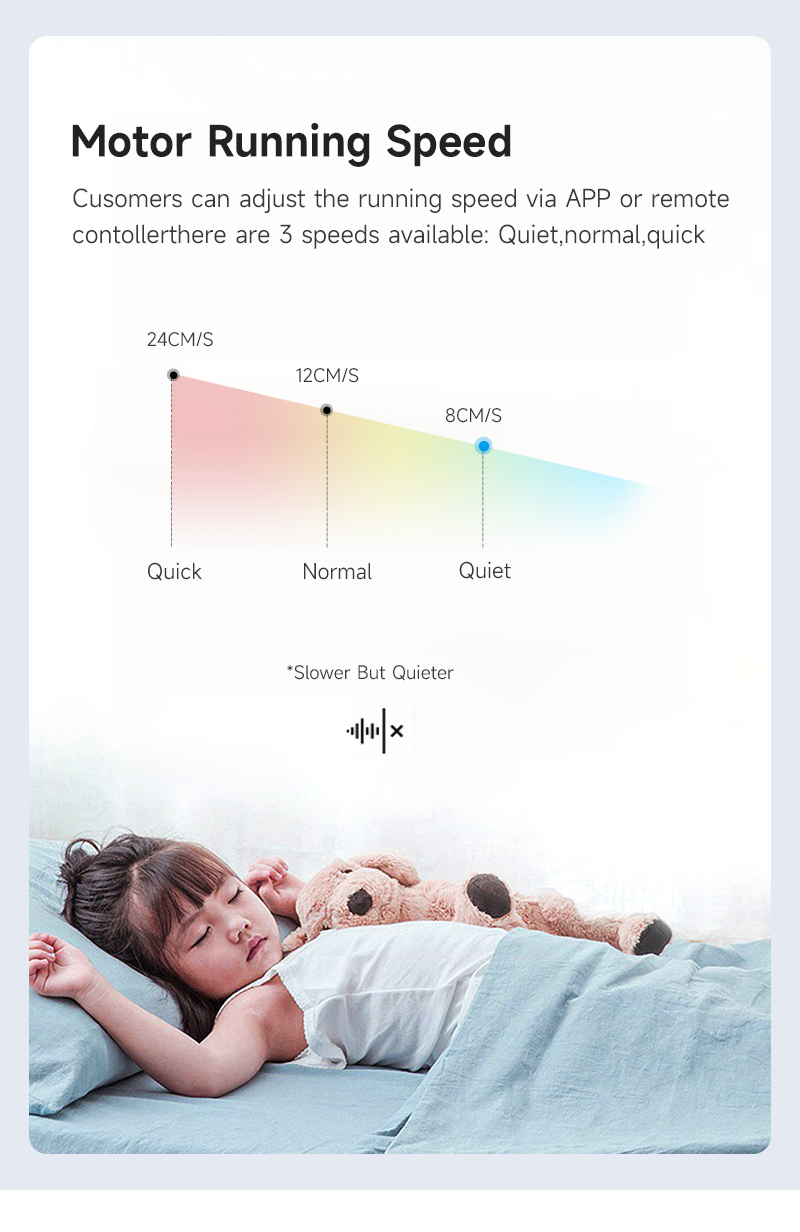

3 speed levels, which could be adjusted by the remote

Smart curtain motor function
