HUNTER 101 Remote to work with Smart Curtain Motor

Short Description:

* Magnetic design
* Single channel emitter
* Spare part for double channels, both handheld or wall-mounted



Product Detail

Product Tags

Product Details

Remote HUNTER 101 is especially designed to work with the MAGE series smart curtain. It controls the curtain open, stop and close. What’s more, the setting buttons could set the running limits, changing the motor direction, even adjust the motor speed level. The light on the remote corner reflects the successful operation.

The remote design is mini and elegant. The outer surface is mainly used with the white color plastic injection material.

Quality Control

The buttons are tested by thousands times. Each remote has been tested the radio distance in 50m. The product guarantee is 3 years.

The specification of the remote is below:

Product nameMini Remote
Product modelHUNTER 101
Radio Frequency433.92MHz
Radio distance50m
Battery modelCR2032
Battery voltage3V
Battery life2 years
Battery power210MAH
Fixing designMagnetic
Product size66mm X 33mm X 10mm

Installation

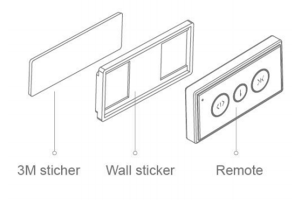

Use the provided 3M sticker on the back side of remote wall holder, then stick on the wall. Put the remote directly on the wall holder with magnetic design.

Remote Control Hunter 1013

From 1 channel to 2 channels

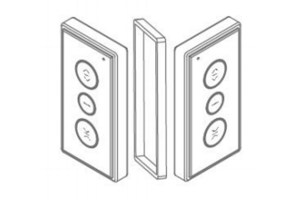

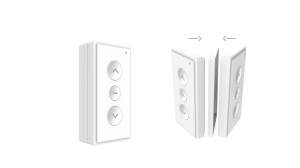

Handheld design. Use a middle part which connect the 2 remotes together. It can stand on the table after the operation.

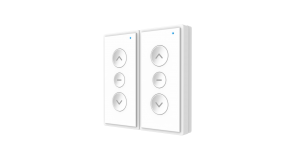

Remote Control Hunter 10111

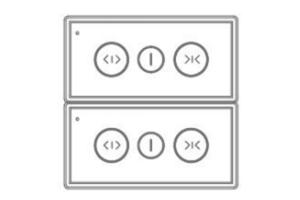

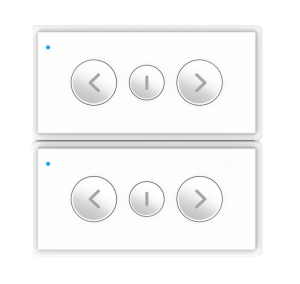

Wall-mounted design. Just sticker on remote upper the other one, it becomes an exact square remote with the size 66mm*66mm. It is also a nice decoration as the normal switch on the wall.

Remote Control Hunter 10112

Battery Replacement

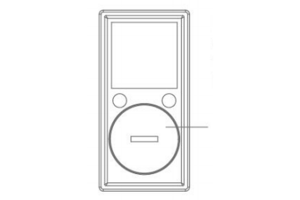

Rotate the battery cover and open the battery compartment, replace the battery with model CR2032.

Remote Control Hunter 1018

Packaging

Each remote is packed with one plastic bag, and each standard smart curtain kit includes 1 remote .  Double channels are available according to customers requirements.
